Popis a parametre

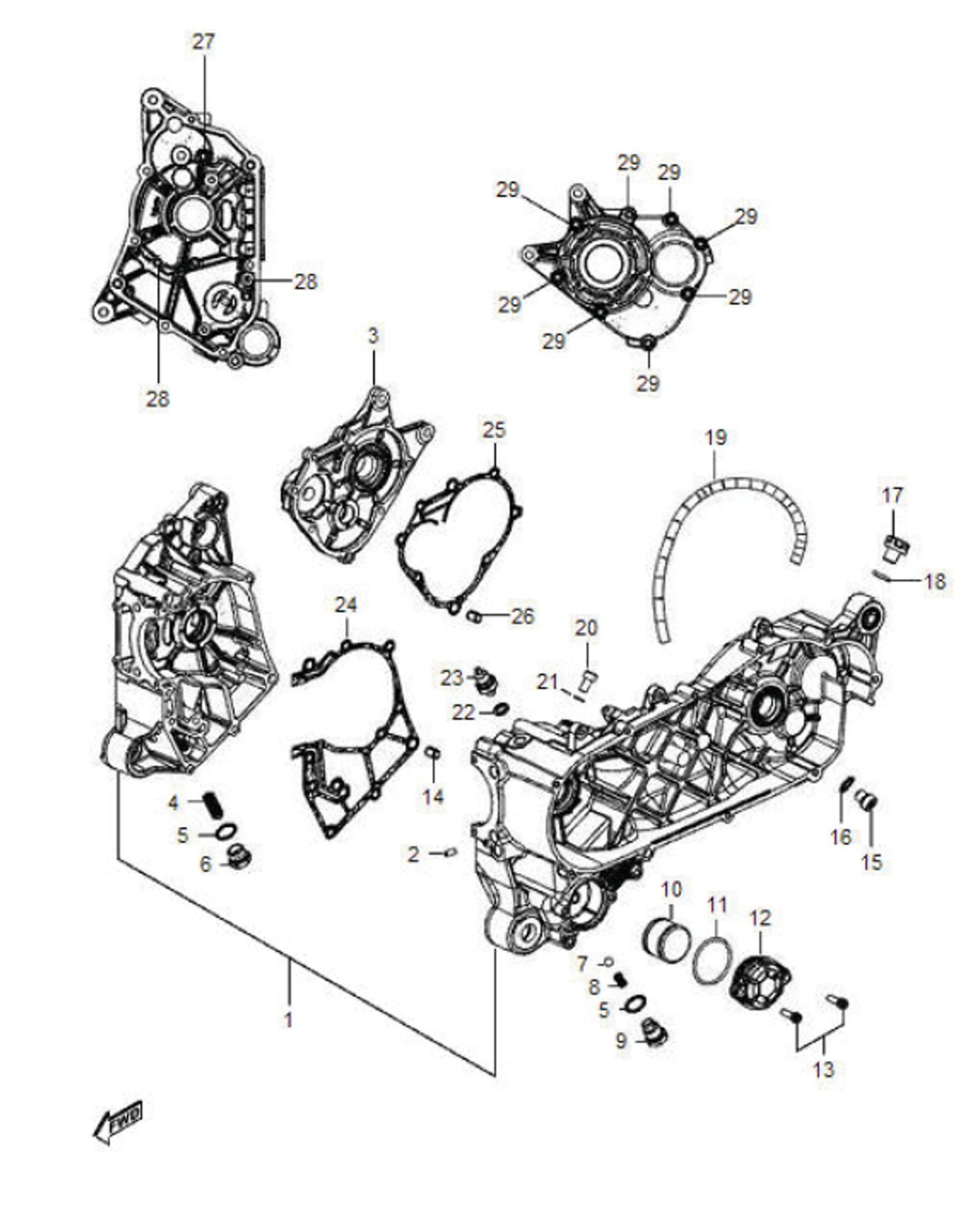

| NO. | PART NO. | DESCRIPTION | QTY. | REMARKS | Without VAT |
| Cena bez DPH | |||||
| 1 | 70003-00301 | ASSY. CRANKCASE COMP. WITH CRANKSHAFT & CONROD COMP. 125cc | 1 | ASSY OF CRANKSHAFT, BEARING, CRANKCASE, CRANKSHAFT CONNECTING ROD COMPONENTS | 460.00 |
| 1.1 | 11511-00300 | CRANKSHAFT OIL SEAL | 1 | 30X52X7，ASSEMBLED ON LEFT CRANKCASE | 8.00 |
| 1.2 | 11521-00300 | TRANSMISSION SHAFT OIL SEAL | 1 | 25x40x7，ASSEMBLED ON LEFT CRANKCASE | 6.00 |
| 2 | M0G2P-50118 | PIN 5X12 | 1 | 2.50 | |
| 3 | 70004-00402 | TRANSMISSION COVER COMPONENT | 1 | 55.00 | |
| 3.1 | 11531-00300 | OUTPUT SHAFT OIL SEAL | 1 | 30X52X7.5，ASSEMBLED ON GEARBOX COVER | 9.00 |
| 4 | 16521-00300 | FILTER,SUCTION OIL | 1 | 2.00 | |
| 5 | 11316-00300 | SEAL,RING | 2 | 0.50 | |
| 6 | 11317-00300 | PLUG,RIGHT CRANKCASE OIL DRAIN | 1 | 2.00 | |
| 7 | 16221-00300 | BALL (D8.5) | 1 | 0.10 | |
| 8 | 16222-00300 | SPRING,BYPASS | 1 | 0.20 | |
| 9 | 16223-00300 | PLUG,OVER PRESSURE VALVE | 1 | 2.00 | |
| 10 | 16513-00300 | FILTER,OIL | 1 | 6.70 | |
| 11 | 16512-00300 | O-RING | 1 | 0.80 | |
| 12 | 16511-05300 | COVER,OIL FILTER | 1 | 7.00 | |
| 13 | C2010-6020W | SCREW,HEX SOCKET (M6×20) | 2 | 0.20 | |
| 14 | 04221-00300 | DOWEL, RING (D10X13) | 2 | 0.30 | |
| 15 | 11324-00300 | PLUG,TRANSMISSION OIL DRAIN | 1 | 1.50 | |
| 16 | 11325-00300 | WASHER,SEAL (D12XD18X1) | 1 | 0.40 | |
| 17 | 11322-00300 | PLUG,TRANSMISSION OIL FILLING | 1 | 0.80 | |
| 18 | 11323-00300 | O-RING | 1 | 0.20 | |
| 19 | 09354-00300 | HOSE,GEARBOX BREATHING | 1 | 1.80 | |
| 20 | C2010-8014W | SCREW,HEX SOCKET (M8X14 ) | 1 | 0.40 | |
| 21 | 11326-00300 | GASKET (D8X12) | 1 | 0.30 | |
| 22 | 09168-00300 | WASHER | 1 | 0.60 | |
| 23 | 16525-00300 | SWITCH,OIL PRESSURE | 1 | 10.00 | |
| 24 | 11481-00301 | GASKET,CRANKCASE | 1 | 4.50 | |
| 25 | 11482-05300 | GASKET,TRANSMISSION COVER | 1 | 5.00 | |
| 26 | 04221-00300 | DOWEL, RING (D10X13) | 2 | 0.30 | |
| 27 | C2010-8014W | SCREW,HEX SOCKET (M8X14 ) | 1 | 0.40 | |
| 28 | C2010-6020W | SCREW,HEX SOCKET (M6×20) | 2 | 0.20 | |
| 29 | C2010-6030W | BOLT (M6X30) | 8 | 0.20 |
