CRANKCASE ASSY

Name: CRANKCASE ASSY
SKU: P273699
Price: 0.01 EUR

0,01 € Vrátane DPH
0,01 € Bez DPH
Na centrálnom sklade

+ -

(ks)

Porovnať

Zaradené v kategóriách: DRAGSTER 700

Popis a parametre

0,01 €

Popis a parametre

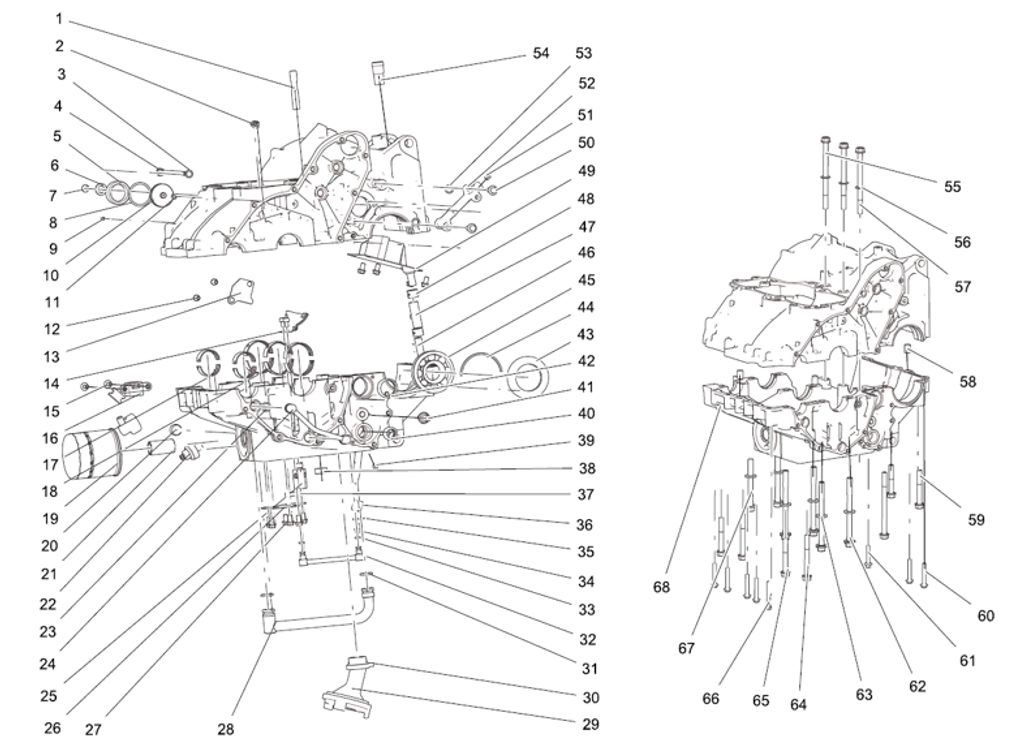

NO.	CODE	DESCRIPTION	QTY	REMARKS	Without VAT Cena bez DPH
1	159136600000	DOUBLE END STUD M10	1		0,50
2	159496540000	FUEL INJECTION NOZZLE	2		2,00
3	B190100800A0	O-RING 8×1.8	1		0,10
4	159256600000	INNER OIL PIPE ASSEMBLY	1		3,90
5	159186580000	AXLE SLEEVE	1		4,30
6	159196600000	AXLE SLEEVE PRESSING PLATE	1		0,20
7	B0107060186H	BOLT M6×18	1		0,10
8	B190103000B0	O-RING 30×2.65	1		0,20
9	B091404008B4	DOWEL PIN 4×8	1		0,10
10	159176600000	UPPER TANK OIL PLUG	1		3,40
11	B190100487A0	O-RING 4.87×1.8	1		0,10
12	B0205050086H	HEXAGON SOCKET HEEAD CAP SREW M5×8	4		0,10
13	159156600000	RESPIRATOR BAFFLE	1		0,40
14	159536600000	PARTITION PLATE AS-OIL CHAMBER	1		0,50
15	B0107050126H	BOLT M5×12	2		0,10
16	159566600000	TRIGGER COMPONENT	1		17,20
17	159106600000	BALANCE SHAFT BEARING BUSH,BROWN	4		7,20
17	159106600010	BALANCE SHAFT BEARING BUSH,BLACK	4		5,40
17	159106600020	BALANCE SHAFT BEARING BUSH,BLUE	4		5,40
18	159096600000	CRANKSHAFT BEARING BUSH,BROWN	6		7,20
18	159096600010	CRANKSHAFT BEARING BUSH,BLACK	6		7,20
18	159096600020	CRANKSHAFT BEARING BUSH,BLUE	6		7,20
19	269256600040	OIL FINE FILTER	1		5,60
20	159476600000	OIL FINE FILTER ADAPTER	1		3,70
21	159126610000	PLUG 3/8	1		0,70
22	159586600000	OIL PRESSURE LOW PRESSURE ALARM	1		7,10
23	100053070001	O-RING 10×2	2		0,30
24	159656600000	TUBING ASSEMBLY Ⅱ	1		7,70
25	159596600000	RELISF VALE ASSEMBLY	1		10,30
26	159406600000	LOWER BOX COVER	1		0,70
27	B0107060106H	BOLT M6×10	10		0,10
28	269266600000	GUIDE TUBE ASSEMBLY	1		9,20
29	269206600000	PRIMARY OIL FILTER ASSEMBLY	1		3,20
30	269216600000	SEALING RING	1		0,40
31	269306600000	O-RING 14×2.5	2		0,20
32	159496600000	TUBING ASSEMBLY I	1		7,20
33	159526600000	O-RING 5×2	2		0,10
34	B0205060086H	SCREW M6×8	1		0,10
35	269186600000	TUBING ASSEMBLY I PRESSING PLATE	1		0,20
36	159316600000	SHOCK ABSORBER	1		0,40
37	159446600000	BLOCKING BLOCK2	1		0,70
38	159436600000	BLOCKING BLOCK1	1		0,90
39	B0223060082H	HEXAGON SOCKET FLAT END FASTENING SCREW M6×8	1		0,20
40	219536600000	ROLLING 13×19×12	1		4,10
41	159486600000	SPRING LOCATING PIN	1		0,40
42	B1212K301301	NEEDLE BEARING HK3013	1		1,40
43	159066600000	OUTPUT SHAFT OIL SEAL	1		4,30
44	159046600000	OUTPUT SHAFT BEARING LOCATING RING	1		0,80
45	159056600000	OUTPUT SHAFT BEARING 25×62×17	1		23,30
46	159306600000	OIL RETURN PIPE	1		3,50
47	159296600000	RUBBER TUBE 9×12×38	1		0,40
48	B1700012000A	CLAMP	2		0,30
49	159326600000	RESPIRATOR WELDING SUBASSEMBLY	1		5,80
50	160306030040	BOLT M6×22	2		0,50
51	150113820000	PLUG	1		0,20
52	15922660NB01	OIL OUTER PIPE	1		6,20
53	159856600000	O-RING 9×1.9	2		0,20
54	159146600000	BREATER TUBE	1		1,50
55	159826600000	BOLT M8×120	1		0,90
56	159116600000	CARRIER RING 8	3		0,20
57	159836600000	BOLT M8×110	3		0,90
58	150083070000	DOWEL PIN 10×14	3		0,10
59	159846600000	BOLT M8×50	1		0,50
60	B0107060386H	BOLT M6×38	6		0,20
61	B0107060326H	BOLT M6×32	1		0,10
62	159386600000	BOLT M9×113	4		0,90
63	159396600000	CARRIER RING 9	6		0,30
64	150316030110	BOLT M8×75	2		0,20
65	B0109080606H	BOLT M8×60	3		0,40
66	B0107060456H	BOLT M6×45	1		0,20
67	159716600000	BOLT M9×83	2		0,60
68	15902658NB01	BOX CLOSING MACHINING ASSEMBLY	1		382,10

Náš kód: P273699
