Popis a parametre

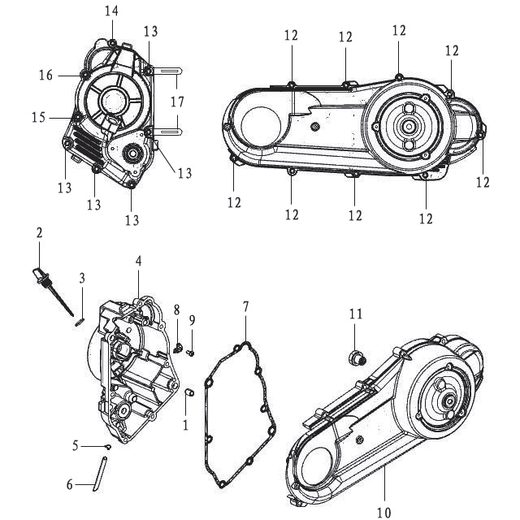

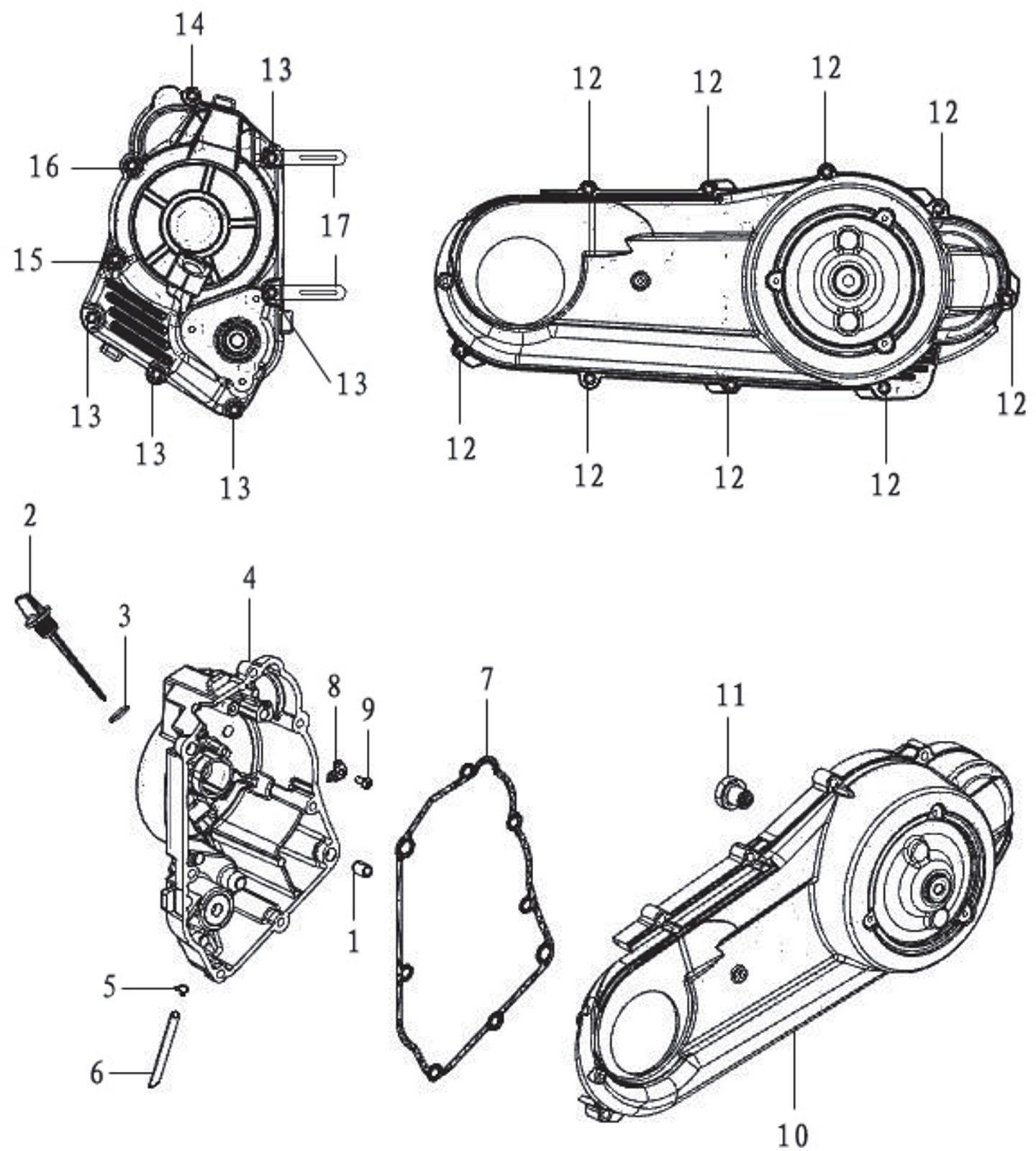

| NO. | PART NO. | DESCRIPTION | QTY. | REMARKS | Without VAT |
| Cena bez DPH | |||||
| 1 | 04221-00300 | DOWEL, RING (D10X13) | 2 | 0.30 | |
| 2 | 11971-00300 | PLUG,OIL LEVEL | 1 | 1.80 | |
| 3 | 11972-00300 | O-RING | 1 | 0.20 | |
| 4 | 70005-01E00 | MAGNETO COVER COMPONENT | 1 | INCLUDING COVER IGNITION, BALL BEARING, ROTARY SHAFT LIP SEAL, WATER PUMP SEAL, SHAFT,WATER PUMP, CIRCLIP, IMPELLER WATER PUMP | 86.00 |
| 4.1 | 11541-00300 | WATER PUMP SHAFT OIL SEAL | 1 | 10X22X7，ASSEMBLED ON MAGNETO COVER | 2.00 |
| 5 | 09401-06101 | CLIP | 1 | 0.20 | |
| 6 | 11352-05300 | HOSE,DRAIN 200cc | 1 | 0.80 | |
| 7 | 11483-01E00 | GASKET,MAGNETO COVER 200cc | 1 | 4.50 | |
| 8 | 32371-05300 | PLATE | 1 | 0.70 | |
| 9 | C4316-5010L | SCREW | 1 | 0.10 | |
| 10 | 70006-00401-04X | CVT COVER COMPONENT 200cc | 1 | 85.00 | |
| 11 | 21621-00300 | BUSH | 1 | 3.90 | |
| 12 | C2010-6035W | SCREW,HEX SOCKET (M6×35) | 9 | 0.20 | |
| 13 | C2010-6110W | SCREW,HEX SOCKET (M6×110) | 5 | 0.70 | |
| 14 | C2010-6025W | SCREW,HEX SOCKET (M6×25) | 1 | 0.20 | |
| 15 | C2010-6140W | SCREW,HEX SOCKET (M6×140) | 1 | 0.90 | |
| 16 | C2010-6170W | SCREW,HEX SOCKET (M6×170) | 1 | 2.50 | |
| 17 | 09404-06431 | CLIP | 2 | 0.50 |
