Popis a parametre

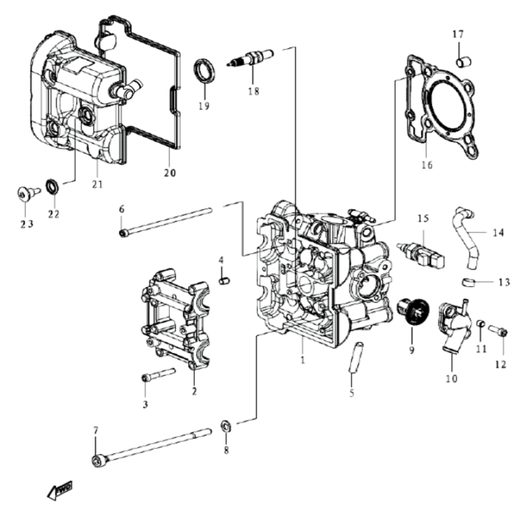

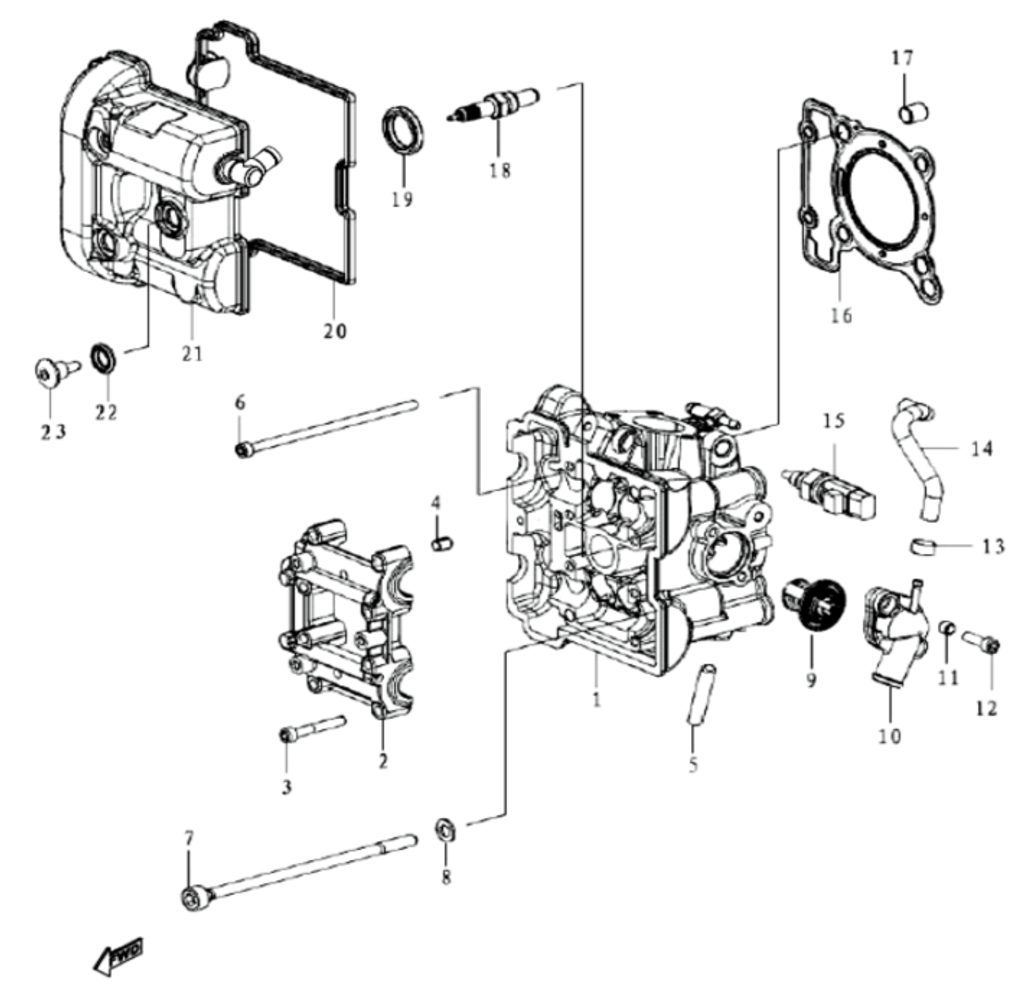

| NO. | PART NO. | DESCRIPTION | QTY. | REMARKS | Without VAT |
| Cena bez DPH | |||||
| 1+2 | 70001-05300 | CYLINDER HEAD WITH SUPPORT CAMSHAFT 125cc | 1 | SUPPLIED WITH SUPPORT CAMSHAFT ASSEMBLY (No. 2) | 320.00 |
| 3 | C2010-6040L | BOLT,CYLINDER HEAD (M6×40) | 8 | 0.30 | |
| 4 | 11132-00300 | DOWEL,RING (D8×10) | 2 | 0.20 | |
| 5 | K1026-8040W | STUD BOLT | 2 | 0.70 | |
| 6 | 11163-00300 | SCREW,HEX SOCKET (M6×130) | 2 | 0.50 | |
| 7 | 11162-00300 | SCREW (M8×166) | 4 | 6.00 | |
| 8 | D1023-0800L | WASHER (D8.5×D16×1.5) | 4 | 0.10 | |
| 9 | 17600-00300 | THERMOSTAT | 1 | 23.00 | |
| 10 | 17711-00300 | COVER,THERMOSTAT | 1 | 4.00 | |
| 11 | 17712-00300 | SPACER (D6×D8×6.8) | 2 | 0.40 | |
| 12 | C2010-6020W | SCREW,HEX SOCKET (M6×20) | 2 | 0.20 | |
| 13 | 11171-00300 | CLIP, 012.3-706R | 2 | 1.00 | |
| 14 | 09359-05300 | PIPE,BENDED | 1 | 1.00 | |
| 15 | 11101-05300 | SENSOR,WATER TEMPERATURE | 1 | 17.00 | |
| 16 | 11141-03300 | GASKET, CYLINDER HEAD, 125CC | 1 | 22.00 | |
| 17 | 04211-00300 | DOWEL, RING (D12×13) | 2 | 0.40 | |
| 18 | 33500-05400 | SPARK PLUG (NGK PMR9B) | 1 | 42.00 | |
| 19 | 11143-05300 | GASKET,SPARK | 1 | 2.00 | |
| 20 | 11144-00300 | GASKET,CYLINDER HEAD COVER | 1 | 4.00 | |
| 21 | 11120-03M00 | COVER,CYLINDER HEAD | 1 | 18.00 | |
| 22 | 11145-00300 | SEAL,RUBBER | 4 | 0.30 | |
| 23 | 11164-00300 | SCREW,CYLINDER HEAD COVER | 4 | 0.40 |
