Popis a parametre

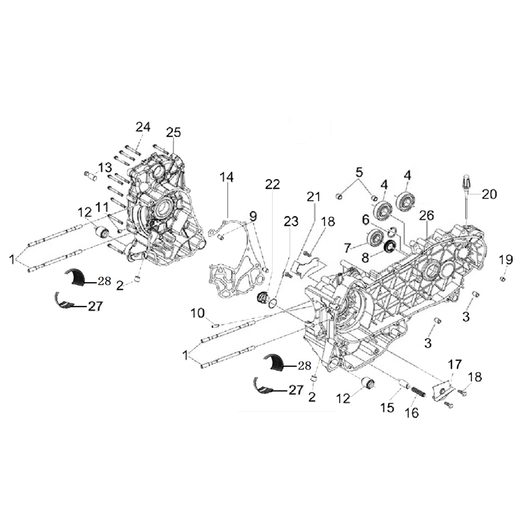

| NO. | PART No. | DESCRIPTION | QTY | REMARKS |
Without VAT Cena bez DPH |
| 1 | 100071665-0001 | Cylinder Stud AB | 4 | 3.00 | |
| 2 | 100204690-0001 | Bolt,M12×1.5 | 2 | 1.00 | |
| 3 | 100100871 | Pin 9.5×15 | 2 | 0.40 | |
| 4 | 100100954 | Bearing,(6302_C3) | 2 | 6.00 | |
| 5 | 100100875 | Dowel Pin,φ11×10 | 2 | 0.40 | |
| 6 | 100100623 | Check Ring,φ26.9 | 1 | 0.40 | |
| 7 | 100073175 | Bearing | 1 | 17.00 | |
| 8 | 100104795 | Oil Seal 20×32×7 | 1 | 2.80 | |
| 9 | 100100871 | Pin 9.5×15 | 2 | 0.40 | |
| 10 | 100100725 | Oil Puss | 1 | 0.60 | |
| 11 | 100100473 | Screw | 1 | 0.90 | |
| 12 | 100107456-0001 | Absorber Sleeve | 2 | 2.90 | |
| 13 | 100104050 | SpRing,Stud Coupler For Stand | 1 | 1.10 | |
| 14 | 100071662 | Crankcase Gasket | 1 | 3.60 | |
| 15 | 100103007 | Decompression | 1 | 1.00 | |
| 16 | 100103006 | Decompression Spring | 1 | 0.40 | |
| 17 | 100719703 | Cover Sprocket Wheel Oil Pump | 1 | 2.10 | |
| 18 | 100033132-0002 | Bolt,M5×16 | 4 | 0.10 | |
| 19 | 100102724 | Dowel Pin,φ7.5×12 | 1 | 0.30 | |
| 20 | 100104871 | Oil Ruler Assy | 1 | 1.40 | |
| 21 | 100085671-0001 | Oil Clapboard | 1 | 1.50 | |
| 22 | 100200075 | Strainer Oil Filter Pedestal | 1 | 2.80 | |
| 23 | 100107743 | O-Ring,φ29.87×1.78 | 1 | 0.50 | |
| 24 | 100033123-0003 | Bolt,M6×60 | 10 | 0.20 | |
| 25 | 100071663-0002 | Right Crankcase Block | 1 | 90.00 | |
| 26 | 100772062-0002 | Left Crankcase Block | 1 | 170.00 | |
| 27 | 100207216 | Crankshaft Bearing,A | 2 | 10.50 | |
| 28 | 100207218 | Crankshaft Bearing,B | 2 | 10.00 |
