Popis a parametre

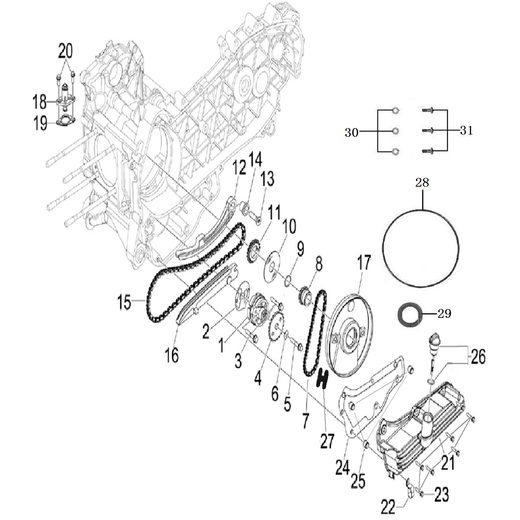

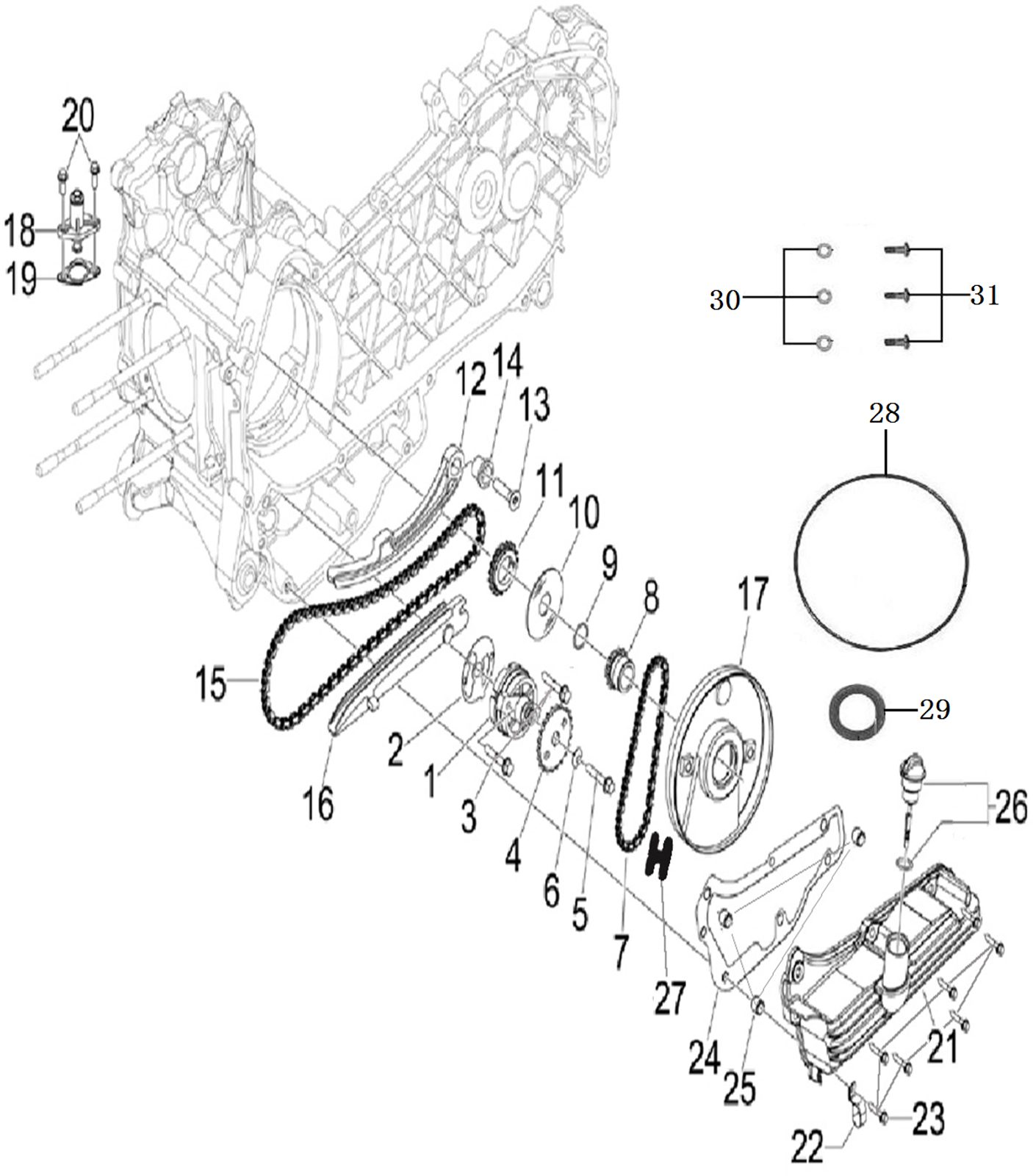

| NO. | PART No. | DESCRIPTION | QTY | REMARKS |
Without VAT Cena bez DPH |
| 1 | 100100048 | Oil Pump Assy | 1 | 13.00 | |
| 2 | 100208732 | Gasket Oil Pump | 1 | 0.10 | |
| 3 | 100033134-0002 | Bolt,M5×35 | 2 | 0.10 | |
| 4 | 100104949 | Hub Dump Chain Sprocket Oil Pump | 1 | 7.50 | |
| 5 | 100033104-0002 | Bolt,M6×14 | 1 | 0.10 | |
| 6 | 100300843-0001 | Dish Washer,φ6.4×2×φ20 | 1 | 0.20 | |
| 7 | 100100147 | Chain Oil Pump | 1 | 4.50 | |
| 8 | 100100022 | Sprocket-P | 1 | 8.10 | |
| 9 | 100107680 | O-Ring,φ15×1 | 1 | 1.00 | |
| 10 | 100106439 | Washer,φ17×0.5×φ46 | 1 | 0.20 | |
| 11 | 100101970 | Hub Dump Chain Sprocket | 1 | 7.60 | |
| 12 | 100071657 | Distrib. Chain Slipper | 1 | 7.50 | |
| 13 | 100033110-0003 | Bolt,M6×25 | 1 | 0.10 | |
| 14 | 100105210 | Bush | 1 | 0.60 | |
| 15 | 100105116 | Sprocket Chain | 1 | 25.00 | |
| 16 | 100071658 | Distrib. Chain Blade | 1 | 6.10 | |
| 17 | 100202649 | Disk Insulator | 1 | 4.60 | |
| 18 | 100108481-0001 | Chain Tensioning Wheel | 1 | 9.00 | |
| 19 | 100108520 | Gasket Tensioner | 1 | 0.50 | |
| 20 | 100033106-0005 | Bolt,M6×16 | 2 | 0.10 | |
| 21 | 100761824 | Oil Sump | 1 | 16.00 | |
| 22 | 100105487-0001 | Clip | 2 | 0.70 | |
| 23 | 100033114-0004 | Bolt,M6×30 | 7 | 0.10 | |
| 24 | 100765657 | Gasket | 1 | 1.70 | |
| 25 | 100102724 | Dowel Pin,φ7.5×12 | 3 | 0.30 | |
| 26 | 100104936 | Oil Plug Assy | 1 | 1.30 | |
| 27 | 100202741 | Assembly Chain Protect Plate | 1 | 1.70 | |
| 28 | 100107646 | O-Ring,φ101×2.6 | 1 | 2.20 | |
| 29 | 100104681 | Oil Seal 24×35×7 | 1 | 3.00 | |
| 30 | 100106559 | Washer φ5.5×1×φ10 | 3 | 0.20 | |
| 31 | 100031817-0007 | Screw,M5×12 | 3 | 0.10 |
